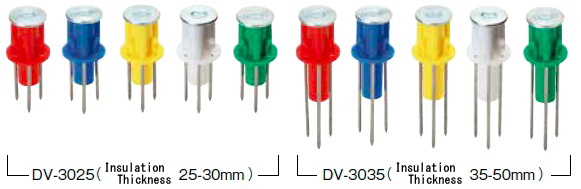

| Color |
|
Click the appointed color. |
|
| Features |
|
●Self-standing with three nails
●Easy to place with only one hand
●After the formwork is removed,the color is visible from the bottom of
the slab.
●Suitable for hanging lightweight items like electrical and disaster prevention
systems
●A Slidart Punch comes with the inserts
when purchased by the case.
●When the formwork is removed,nails are also removed with the plywood and
the ceiling slab is clean.
●If a nail remains embedded in the slab,pull out using pliers etc. |
| |
 |
|
| |
 |
| |
| Part No.List-Code No. M16327 Insulation Various |
※Pullout test values are values when the insert breaks Unit:mm |
| Part No. |
Thread
size |
Effective
Embedded
Depth(mm) |
Insulation
Thickness
(mm) |
Embedded in Concrete,Pullout Test Result |
Quantity/
Case(pcs) |
Color |

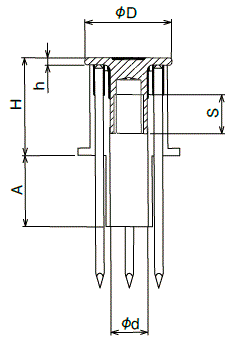

Effetive Thread Length Ｓ |
Diameter of Head
Ｄ |
Diameter of Core
ｄ |
Height
Ｈ |
Thickness of Head
ｈ |
Insulation Layer
Ａ |
Ave.
Pullout Force(kN) |
Concrete Compressive Strength(N/mm2) |

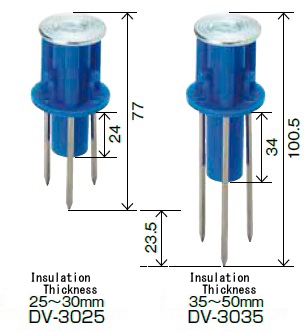

| DV-3025 |
W3/8 |
30 |
25・30 |
14.6 |
25.0 |
400 |
RD・BL・YL・WT・GR |
13 |
28 |
12 |
32.5 |
2.5 |
24 |
| DV-3035 |
W3/8 |
30 |
35・38・40・45・50 |
14.6 |
25.0 |
200 |
RD・BL・YL・WT・GR |
13 |
28 |
12 |
32.5 |
2.5 |
34 |
|
|
| |

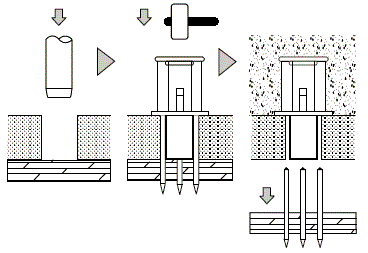

| Placement Procedure |
|
１．Open a hole into an insulation using a Slidart punch (twist-in vertically).
２．Press the insert into the opening of the insulation.
３．Drive the insert with a hammer vertically and anchor firmly.
４．Screw in a bolt to the full depth to prevent loosening
▲Precautions in Placement
・The insert may be lifted due to vibration when another insert is driven.Before
concrete is placed,check that the inserts are completely driven in without
lifting.
・Due to various factors,the nails may remain embedded in the ceiling slab,
embedded nails must be pulled out using pliers etc.
・Drive the insert carefully so that the base of the insert will not penetrate
into the insulation. |
|
|
